Smart Home Electrical Requirements Wiring, Outlets & NEC Code 2026

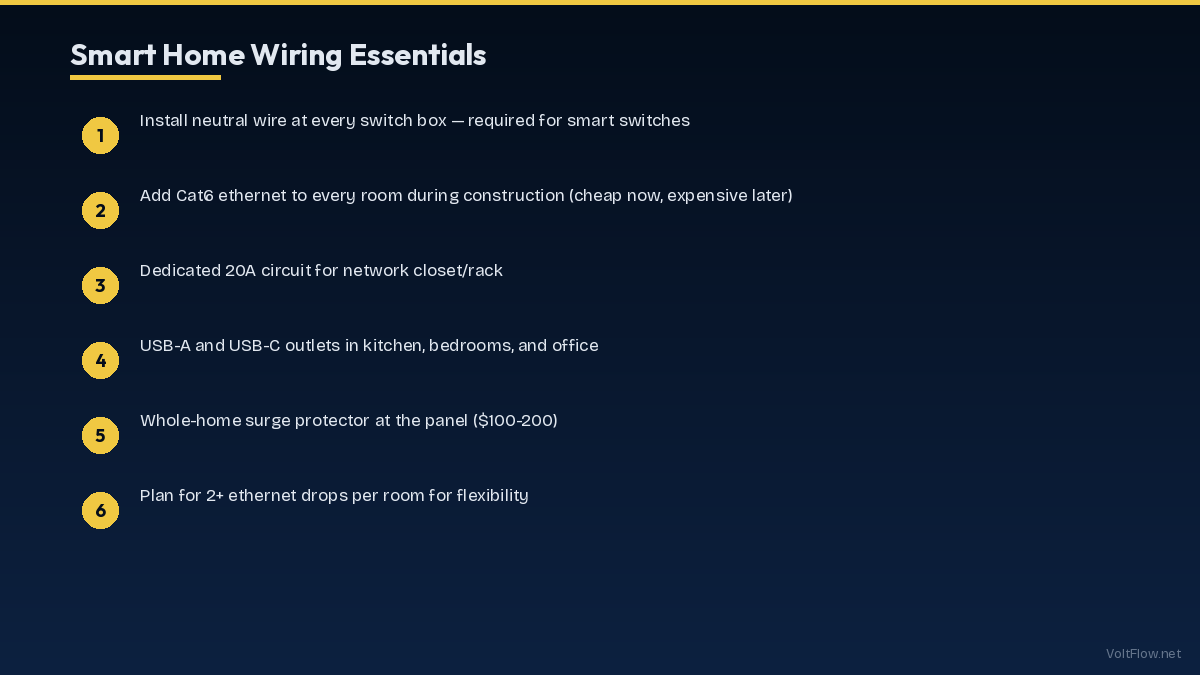

Building or upgrading a smart home requires specific electrical infrastructure that goes beyond standard wiring. The three most important requirements are: neutral wires at every switch box (required by NEC 404.2(C) and needed for smart switches), Cat6 ethernet drops in every room, and dedicated circuits for networking equipment. Planning these during construction costs a fraction of retrofitting later.
Neutral Wire at Every Switch — NEC 404.2(C)
NEC 404.2(C) has required a neutral conductor at every switch location since the 2011 code cycle. This was specifically added to support smart switches and occupancy sensors that need neutral to power their electronics. If your home was built before 2011, many switch boxes may only have hot and ground (no neutral). Retrofitting neutral wires is expensive ($200-500 per switch). For new construction, this costs nothing extra — just ensure your electrician pulls /3 cable (with neutral) to every switch, even single-pole locations.
Structured Wiring: Cat6 Ethernet
WiFi is convenient but wired ethernet is faster, more reliable, and lower latency. During construction, running Cat6 cable costs $50-100 per drop (cable + labor). Retrofitting later costs $200-400 per drop. Plan for: 2 drops per bedroom (TV + work), 2 drops per living area, 1-2 per office, 1 per security camera location, and 4-8 drops in the network closet. All runs terminate at a central patch panel in a network closet. Cat6 supports 10 Gigabit at short distances and is the minimum recommended standard for 2026.
USB Outlets and Charging Stations
Install USB-A and USB-C combination outlets in key locations: kitchen countertop (phone while cooking), bedside tables (overnight charging), home office (device charging), entryway (quick charge on arrival). Modern USB-C outlets deliver up to 30W — enough for fast-charging phones and tablets. Cost: $25-40 per outlet vs $3 for a standard outlet — a small premium for major convenience. Replace the most-used outlets first; you can always add more later.
Dedicated Circuits for Smart Home Infrastructure
A smart home network closet needs its own dedicated 20A circuit for: router, network switch, NAS (Network Attached Storage), smart home hub, and PoE (Power over Ethernet) switch for cameras. This keeps network equipment isolated from other loads and prevents tripped breakers from taking down your entire smart home. Also consider: a UPS (uninterruptible power supply) on this circuit to keep WiFi and security running during brief outages. For whole-home audio, run dedicated speaker wire (14/2 or 16/2) to each speaker location.
| Item | New Construction | Retrofit | Notes |
|---|---|---|---|
| Neutral at switches | Included | $200-500/switch | NEC 404.2(C) required since 2011 |
| Cat6 per drop | $50-100 | $200-400 | 2 drops per room recommended |
| USB outlet | $25-40/each | $25-40/each | Same cost new or retrofit |
| Network closet circuit | $150-300 | $300-600 | Dedicated 20A with UPS |
| Whole-home surge | $100-200 | $100-200 | NEC 2020 requires for new homes |

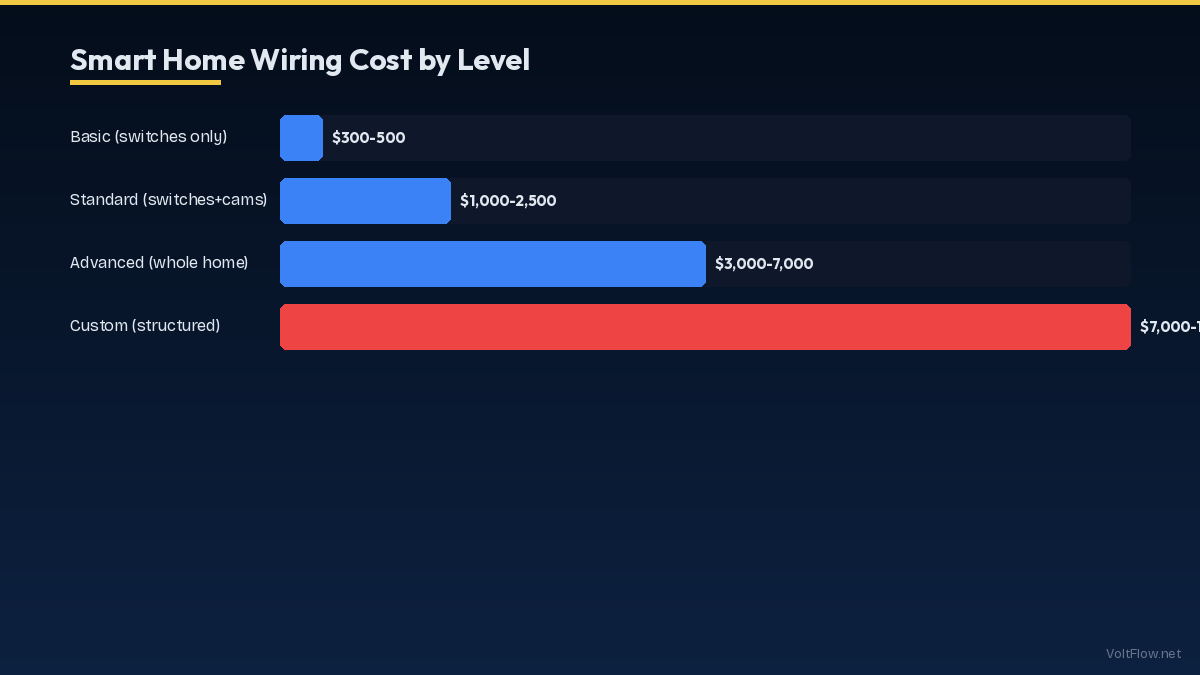

| Total (avg home) | $1,500-3,000 | $5,000-12,000 | 10-20 drops + switches + surge |
Whole-Home Surge Protection
Smart home devices are sensitive electronics that can be damaged by power surges. Install a whole-home surge protector at your electrical panel ($100-200 installed). This protects every circuit in the house from lightning strikes, utility surges, and switching transients. Additionally, use point-of-use surge protectors for your most expensive equipment: TV, computer, and network closet. NEC 2020 (242.56) now requires Type 1 or Type 2 surge protective devices for all new dwelling units — check if your jurisdiction has adopted this requirement.
Disclaimer: For educational reference only. Consult a licensed professional.
