Wire Size Calculator for Canadian Electrical Code (CEC) 2026

Selecting the correct wire size under the Canadian Electrical Code (CEC) is essential for safety, efficiency, and code compliance. The CEC uses AWG (American Wire Gauge) for smaller conductors and kcmil for larger conductors, with ampacity tables that differ from the US NEC in temperature ratings, derating factors, and installation methods. A 14 AWG copper conductor is rated for 15A in typical residential installations, while a 12 AWG handles 20A. This guide covers CEC ampacity tables, voltage drop calculations, temperature correction, and practical wire sizing for every common Canadian residential and commercial circuit.

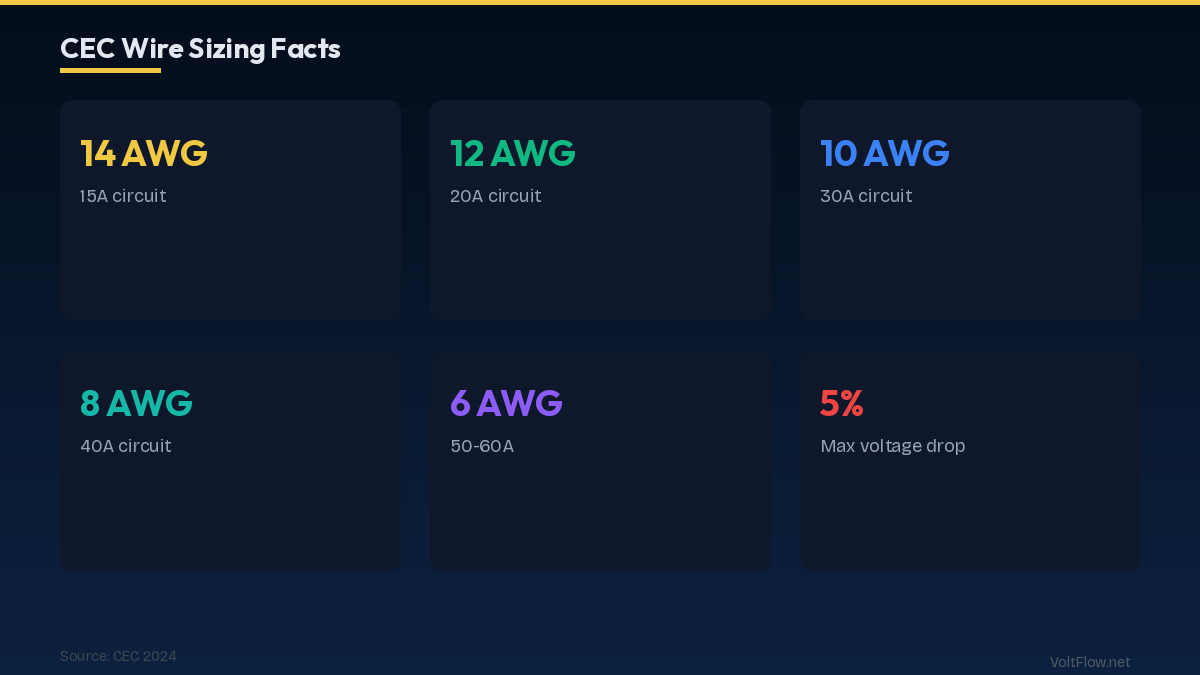

CEC Wire Size Ampacity Table

The CEC ampacity values are derived from CEC Table 2 (copper conductors) and Table 4 (aluminum conductors). The ratings shown above apply to conductors installed in raceways or cables with no more than 3 current-carrying conductors and an ambient temperature of 30°C. These conditions represent the baseline for residential installations across most of Canada.

Temperature rating is critical for CEC wire sizing. Residential NMD90 (Loomex) cable has a 90°C conductor rating but is limited to the 60°C ampacity column when terminated at devices rated for 60°C (most standard receptacles and switches). When terminated at 75°C-rated equipment (many breaker panels, commercial devices), the 75°C ampacity column applies. The 90°C column is used only for derating calculations and when all terminations are 90°C rated.

The CEC requires wire sizing based on the continuous load plus 125% of the continuous load, or 100% of the non-continuous load, whichever is greater. A continuous load is defined as a load expected to operate for 3 hours or more. EV chargers, baseboard heaters, and lighting circuits are typically classified as continuous loads. A 40A continuous load requires a conductor rated for at least 50A (40 × 1.25).

Canadian wire is manufactured to CSA standards (C22.2) rather than UL standards used in the US. While AWG sizing is identical, cable types differ: NMD90 is the Canadian equivalent of US NM-B (Romex), and TECK90 is used in commercial/industrial applications where the US might use MC cable. Using non-CSA-certified wire in Canada violates the CEC and creates inspection failures.

Aluminum conductors are common in Canadian residential service entrances and large feeders because aluminum costs 40-60% less than copper for equivalent ampacity. The CEC requires aluminum conductors to be two AWG sizes larger than copper for equivalent ampacity (e.g., 2/0 AWG aluminum replaces 2 AWG copper for a 100A service). All aluminum connections must use anti-oxidant compound and be torqued to CEC specifications to prevent overheating.

Voltage Drop Calculations for Canadian Installations

The CEC recommends (but does not mandate for most circuits) a maximum voltage drop of 3% for branch circuits and 5% total from service entrance to the farthest outlet. For a 120V circuit, 3% equals 3.6V. For a 240V circuit, 3% equals 7.2V. While advisory rather than mandatory for most circuits, exceeding these limits causes visible light flickering, motor performance degradation, and reduced appliance lifespan.

The voltage drop formula for single-phase circuits is: VD = (2 × L × I × R) ÷ 1000, where L is one-way distance in metres, I is current in amps, and R is resistance per kilometre from CEC Table D3. For a 20A load on 12 AWG copper over 30 metres: VD = (2 × 30 × 20 × 5.21) ÷ 1000 = 6.25V, or 5.2% on a 120V circuit. This exceeds the 3% recommendation, requiring an upgrade to 10 AWG (R = 3.28 Ω/km) which yields VD = 3.94V (3.3%) — acceptable.

Long wire runs are common in Canadian homes because of the typically larger lot sizes and longer distances between the electrical panel and outbuildings, detached garages, workshops, and well pumps. A 40-metre run to a detached garage on a 20A circuit requires 10 AWG minimum to stay under 3% voltage drop. A 60-metre run to a workshop may require 8 AWG. Always calculate voltage drop for any run exceeding 15 metres.

EV charger circuits deserve special attention for voltage drop because they draw continuous high current. A 40A EV charger (32A continuous at 80% rule) on a 30-metre run of 8 AWG copper has a voltage drop of (2 × 30 × 32 × 2.06) ÷ 1000 = 3.96V on 240V = 1.6% — acceptable. The same circuit at 50 metres would be 6.6V (2.75%) — still acceptable but approaching the limit. At 75 metres, upgrade to 6 AWG.

Canadian climate affects voltage drop through temperature-dependent resistance changes. Copper resistance increases approximately 0.4% per °C above 20°C. In a hot attic running at 50°C in summer, resistance increases by 12%, proportionally increasing voltage drop. The CEC requires derating for ambient temperatures above 30°C, which is particularly relevant for attic-run cables in summer and underground installations where ground temperature varies seasonally.

Temperature Correction and Derating Factors

The CEC requires ampacity correction when ambient temperature exceeds 30°C. Correction factors from CEC Table 5A reduce the allowable ampacity: at 35°C, multiply by 0.91; at 40°C, multiply by 0.82; at 45°C, multiply by 0.71; at 50°C, multiply by 0.58. A 14 AWG conductor rated for 15A at 30°C is reduced to 12.3A at 40°C (15 × 0.82) and 8.7A at 50°C. These deratings apply to cables in hot attics, boiler rooms, and sun-exposed conduit.

Conductor bundling derating applies when more than 3 current-carrying conductors are installed in the same raceway or cable. CEC Table 5C specifies: 4-6 conductors = 80% of single-conductor ampacity; 7-24 conductors = 70%; 25-42 conductors = 60%. A 12 AWG conductor rated for 20A in a 3-conductor cable is reduced to 16A when run in a conduit with 5 other current-carrying conductors (20 × 0.80).

The combination of temperature correction and bundling derating is multiplicative. A 10 AWG conductor (30A at 30°C) in a conduit with 6 conductors at 40°C ambient temperature: 30A × 0.82 (temperature) × 0.80 (bundling) = 19.7A. This significantly reduced ampacity often necessitates using a larger wire size than the simple ampacity table suggests.

Canadian winters present a unique advantage for wire ampacity. Underground cables and outdoor conduit runs experience ambient temperatures well below 30°C for 6-8 months of the year. CEC Table 5A provides ampacity increase factors for temperatures below 30°C: at 20°C, multiply by 1.04; at 10°C, multiply by 1.08; at 0°C, multiply by 1.12. This means winter ampacity exceeds the standard table values — though sizing should still be based on worst-case summer conditions.

Continuous load derating (125% rule) interacts with temperature and bundling corrections. For a 30A continuous baseboard heater circuit at 40°C in a bundled conduit: Required ampacity = 30 × 1.25 (continuous) = 37.5A. Available ampacity for 8 AWG at 40°C with 4-6 conductors = 45 × 0.82 × 0.80 = 29.5A — insufficient. Must upgrade to 6 AWG: 65 × 0.82 × 0.80 = 42.6A — adequate.

Common Canadian Residential Circuits

Kitchen and dining room receptacles require a minimum of two dedicated 20A circuits (12 AWG) under CEC Rule 26-722. These circuits serve countertop receptacles where small appliances (toasters, kettles, blenders) create concentrated loads. Split receptacles on 15A circuits were historically common but the CEC now requires dedicated 20A circuits for kitchen countertop receptacles.

Bathroom receptacles require at least one dedicated 20A circuit (12 AWG) serving only bathroom receptacles. CEC Rule 26-722 mandates GFCI (Ground Fault Circuit Interrupter) protection for all bathroom receptacles. The GFCI device (typically a GFCI breaker or GFCI receptacle) must be rated for the circuit ampacity — a 20A GFCI for a 20A circuit.

Electric baseboard heaters are wired on dedicated 240V circuits sized for continuous load (125% of heater wattage). A 1,500W baseboard draws 6.25A at 240V; at 125% continuous load = 7.81A, requiring 14 AWG on a 15A breaker. Multiple baseboards on one circuit must not exceed the circuit rating. A typical bedroom circuit with two 1,000W baseboards totals 2,000W = 10.4A continuous = requires 12 AWG on a 20A breaker at minimum.

EV charger installations follow CEC Rule 86, which requires a dedicated branch circuit for each EV charging station. Most Level 2 chargers operate at 40A (32A continuous = 40A breaker, 8 AWG copper) or 48A (40A continuous = 50A breaker, 6 AWG copper). The circuit must include a disconnect within sight of the charging station, either as a breaker lock or a separate disconnect switch.

Hot tub and pool pump circuits require specific wire sizing under CEC Rule 68 (pools) and general wiring rules. A typical hot tub draws 40-50A at 240V, requiring 6 AWG copper on a 50-60A GFCI breaker. The GFCI protection is mandatory for hot tub and pool equipment circuits. Wire runs to outdoor hot tubs must use outdoor-rated cable types (NMWU or armoured cable) protected from physical damage.

Service entrance sizing in Canadian homes follows CEC Rule 8-200. A 100A service uses 3 AWG copper or 1/0 AWG aluminum. A 200A service uses 2/0 AWG copper or 4/0 AWG aluminum. Most new Canadian homes are wired with 200A service to accommodate future EV charging, heat pump, and electrification loads. Upgrading from 100A to 200A costs $2,000-$4,000 and involves replacing the meter base, panel, and potentially the service mast.

Wire Types Used in Canadian Electrical Installations

NMD90 (Non-Metallic Dry 90°C) is the standard residential wiring in Canada, equivalent to US Romex/NM-B. NMD90 contains 2 or 3 insulated conductors plus a bare ground wire within a PVC outer jacket. It is approved for dry indoor locations only — not for exposed outdoor use, underground burial, or damp locations. NMD90 in 14/2, 12/2, and 14/3 configurations handles the majority of residential branch circuits.

NMWU (Non-Metallic Wet Underground) cable is the direct-burial rated cable for outdoor underground circuits. NMWU has a moisture-resistant outer jacket and individually insulated conductors rated for wet locations. It must be buried at minimum 600mm (24 inches) depth under general areas or 450mm (18 inches) under a concrete pad. NMWU is the standard choice for underground runs to detached garages, workshops, and garden structures.

TECK90 cable is used in commercial and industrial installations across Canada. It consists of insulated conductors wrapped in an interlocked aluminum armour with a PVC jacket. TECK90 provides mechanical protection, moisture resistance, and can be used in exposed indoor and outdoor locations. It eliminates the need for conduit in many commercial applications, reducing installation time and cost.

AC90 (Armoured Cable 90°C) is used in residential and commercial installations where mechanical protection is needed. The interlocked aluminum armour protects against physical damage. AC90 is common in exposed basement wiring, garage installations, and commercial tenant improvements. The armour serves as the equipment grounding path when properly terminated with approved connectors.

Single conductor wires (TW75, T90, RW90) are used inside raceways (conduit, cable tray). These individual wires provide maximum flexibility for sizing and routing, and are common in service entrances and commercial installations. In residential applications, single conductors in conduit are primarily used for service entrance wiring and underground runs where NMWU is not suitable.

The choice between cable types affects both cost and installation methods. NMD90 is cheapest and fastest to install for interior residential work. TECK90 costs 2-3x more but eliminates conduit requirements. Individual wires in conduit cost the most per foot but offer the most flexibility for future modifications. A licensed Canadian electrician selects the appropriate cable type based on CEC requirements, installation environment, and project economics.

Common Wire Sizing Mistakes in Canada

Mistake 1: Using NEC tables instead of CEC tables. While AWG wire sizes are identical, ampacity values differ between NEC Table 310.16 and CEC Table 2. Some CEC ampacity values are lower than NEC values for the same wire size and temperature rating. Canadian installations must use CEC tables exclusively — ESA inspectors will fail installations sized to NEC standards.

Mistake 2: Ignoring the 80% continuous load rule. Canadian homeowners frequently undersize circuits for baseboard heaters, EV chargers, and other continuous loads. A 30A continuous load requires a 40A breaker (30 ÷ 0.80) and wire sized for 40A. Many DIY installations and even some contractor work fails to account for the continuous load derating, creating overheated conductors and nuisance breaker tripping.

Mistake 3: Failing to calculate voltage drop on long runs. Canadian homes with detached garages, workshops, and outbuildings often have wire runs exceeding 30 metres. A 20A circuit on 12 AWG copper over 40 metres has a voltage drop of 8.34V on 120V (6.9%) — far exceeding the 3% recommendation. The electrician must calculate voltage drop for any run exceeding 15 metres and upsize the wire accordingly.

Mistake 4: Using non-CSA-certified wire or cable. Wire purchased from US suppliers or imported without CSA certification is not legal for use in Canadian electrical installations. ESA inspectors verify CSA markings during inspection. Using non-certified wire requires removing and replacing the installation — an expensive mistake. Always verify the CSA mark before purchasing wire for Canadian installations.

Mistake 5: Improper aluminum wire connections. Aluminum wiring expands and contracts more than copper during thermal cycling, creating loose connections over time. All aluminum connections must use anti-oxidant compound (NoAlox or equivalent), be made with devices rated for aluminum (marked AL-CU or CO/ALR), and be torqued to manufacturer specifications. Failure to follow these procedures creates fire hazards — aluminum connection problems caused significant residential fires in the 1970s and 1980s.

Mistake 6: Not accounting for future load growth. The CEC encourages panel and service sizing that accommodates foreseeable future loads. A home installing solar panels, an EV charger, and a heat pump within the next 5-10 years should be wired with 200A service and adequate panel capacity from the start. Retrofitting a panel upgrade later costs $2,000-$4,000 versus $500-$1,000 incremental cost during initial installation.
