30 Amp vs 50 Amp RV — Complete Electrical Guide Wiring, Power & Adapter Guide 2026
The difference between 30A and 50A RV service is massive: 30 amp gives you 3,600 watts on a single 120V leg, while 50 amp gives you 12,000 watts on two 120V legs. A 30A setup can run one AC plus a few small appliances. A 50A setup can run two ACs, a microwave, and more simultaneously. Choosing the right service depends on your RV size and power needs.

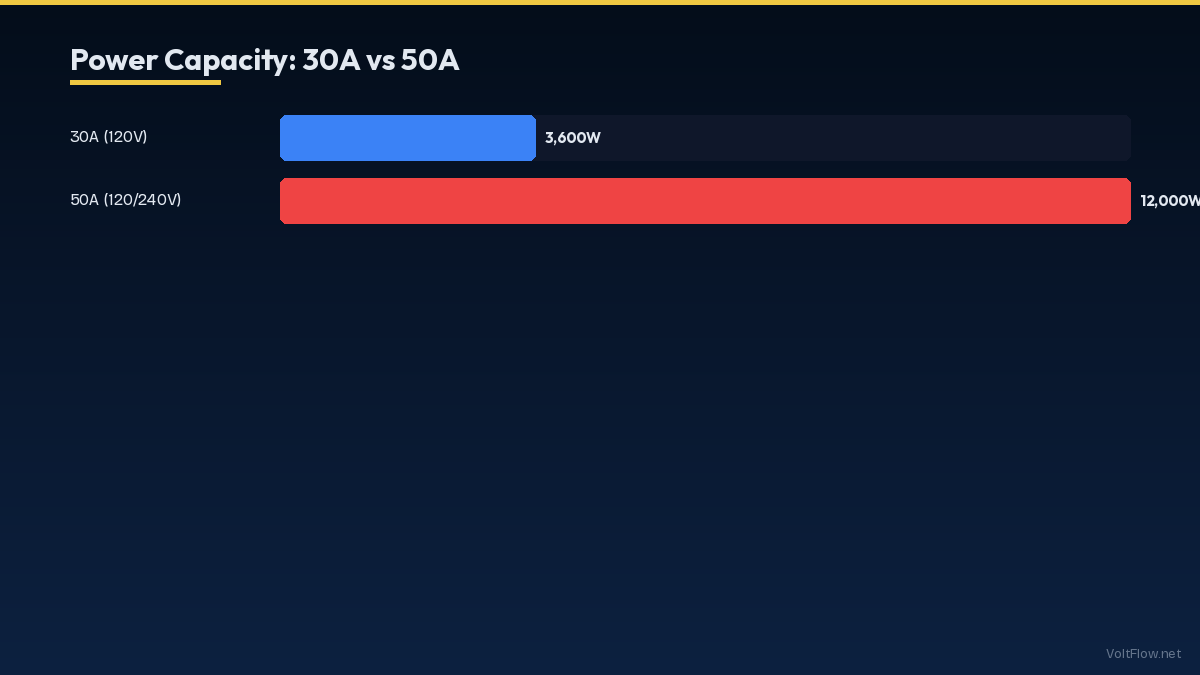

Power Capacity: The Key Difference
30A RV service provides one 120V hot leg at 30 amps = 3,600 watts maximum. This is enough for one 13,500 BTU rooftop AC (about 1,800W startup), a fridge, some lights, and phone charging. Running a microwave while the AC is on will likely trip the breaker. 50A RV service provides two 120V hot legs at 50 amps each = 12,000 watts total. This powers two rooftop ACs simultaneously plus a microwave, washer/dryer, and all other appliances. Large Class A motorhomes and fifth wheels with 2+ ACs require 50A service.
Plugs, Outlets & Wiring
30A uses NEMA TT-30 (Travel Trailer 30A) — a 3-prong connector with one hot, one neutral, and one ground at 120V. Wire: 10 AWG copper with a 30A single-pole breaker. 50A uses NEMA 14-50 — a 4-prong connector with two hots, one neutral, and one ground at 120/240V. Wire: 6 AWG copper with a 50A double-pole breaker. The 50A plug carries 240V to the RV where an internal distribution panel splits it into two 120V legs.
Using Adapters: 50A to 30A (Dogbone)
A 50-to-30 adapter (called a "dogbone") lets a 50A RV plug into a 30A campground pedestal. However, you are limited to 3,600W total — only one leg is powered. You cannot run two ACs. A 30-to-50 adapter lets a 30A RV plug into a 50A pedestal, but your RV still only draws 30A max. Adapters are safe for temporary use but should not replace proper wiring. Always use a surge protector between the pedestal and your RV.
Upgrading from 30A to 50A
Upgrading your RV pedestal or home RV outlet from 30A to 50A requires new wiring, a new breaker, and a new receptacle. Typical cost: $300-800 for a home installation, $1,000-3,000 for a campground pedestal. You need 6 AWG copper wire (vs 10 AWG for 30A), a 50A double-pole breaker (vs 30A single-pole), and a NEMA 14-50R receptacle. The upgrade only makes sense if your RV has a 50A shore power inlet — the RV itself must support 50A service internally.

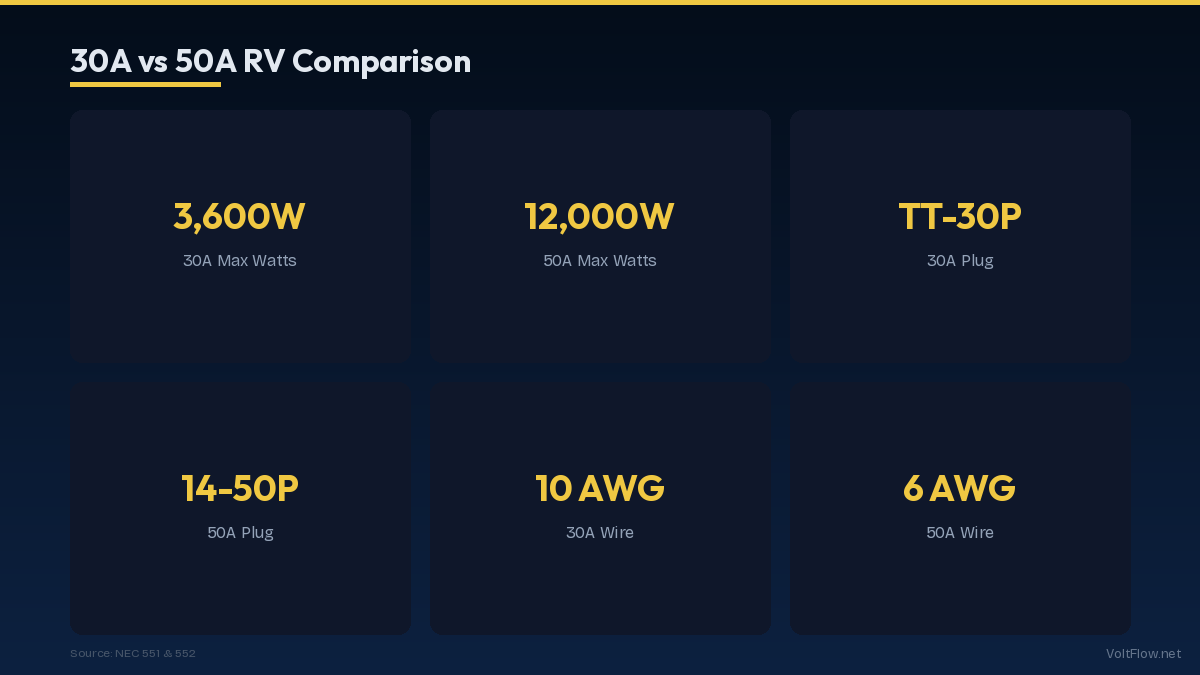

| Feature | 30 Amp | 50 Amp |
|---|---|---|
| Max Watts | 3,600W | 12,000W |
| Voltage | 120V (1 leg) | 120/240V (2 legs) |
| Plug Type | NEMA TT-30P | NEMA 14-50P |
| Wire Size | 10 AWG | 6 AWG |
| Breaker | 30A Single-Pole | 50A Double-Pole |
| Run 2 ACs? | No | Yes |
| Microwave + AC? | Marginal | Easily |
Which Do You Need?
Check your RV shore power inlet. If it is a 3-prong TT-30, you have 30A service. If it is a 4-prong 14-50, you have 50A. Generally: 30A is standard for travel trailers, pop-ups, small fifth wheels, and Class B/C motorhomes. 50A is standard for large fifth wheels, Class A motorhomes, and any RV with 2+ air conditioners. When in doubt, check your RV owner manual for the shore power rating.
Disclaimer: For educational reference only. Consult a licensed professional.
