EV Charger Installation Cost 2026 Level 2 Home Charging Guide

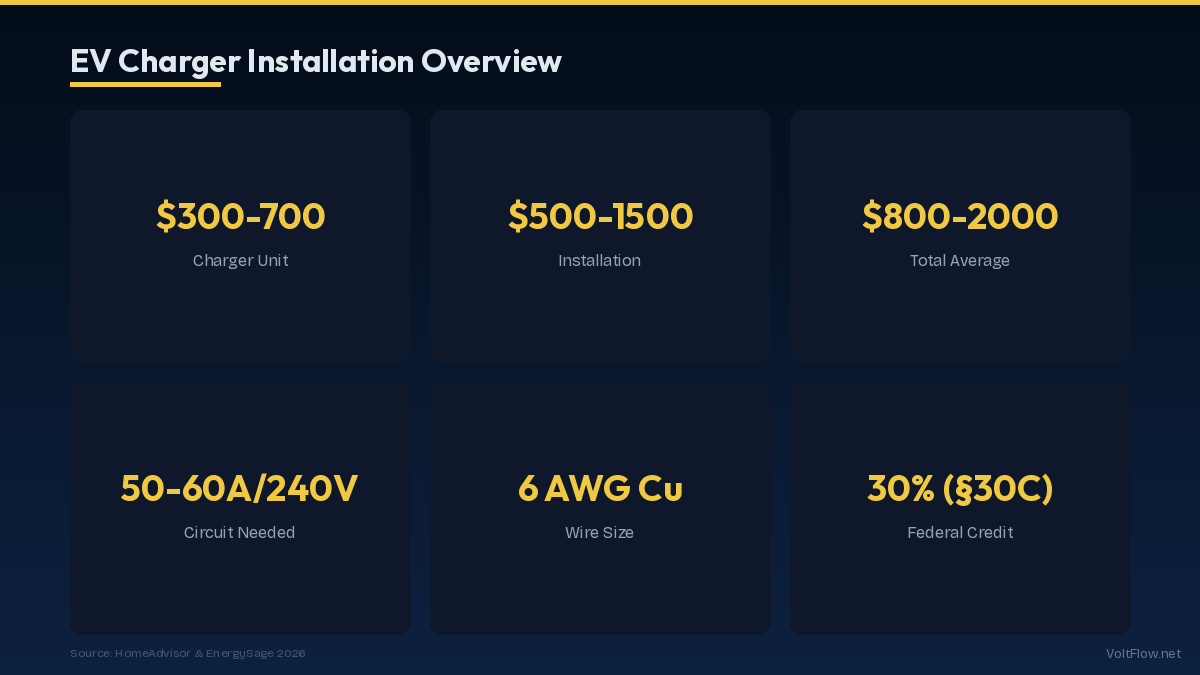

Installing a Level 2 EV charger at home typically costs $800 to $2,000 total — about $300-700 for the charger unit plus $500-1,500 for electrical installation. The biggest cost variable is the distance from your electrical panel to the charging location and whether your panel has spare capacity. A 30% federal tax credit (up to $1,000) under IRC §30C can significantly offset the cost.
Cost Breakdown: Charger + Installation
The EV charger unit itself costs $300-700 for a quality Level 2 unit (ChargePoint Home Flex, Grizzl-E, JuiceBox, Tesla Wall Connector). Installation labor varies from $500 for a simple hookup near the panel to $1,500+ for long runs or panel upgrades. The main cost factors are: distance from panel to charger location, whether you need a new circuit or have an available slot, the wire gauge needed (6 AWG for 48A, 8 AWG for 32A), and local permit and inspection fees ($50-200).
Wiring Requirements per NEC 625

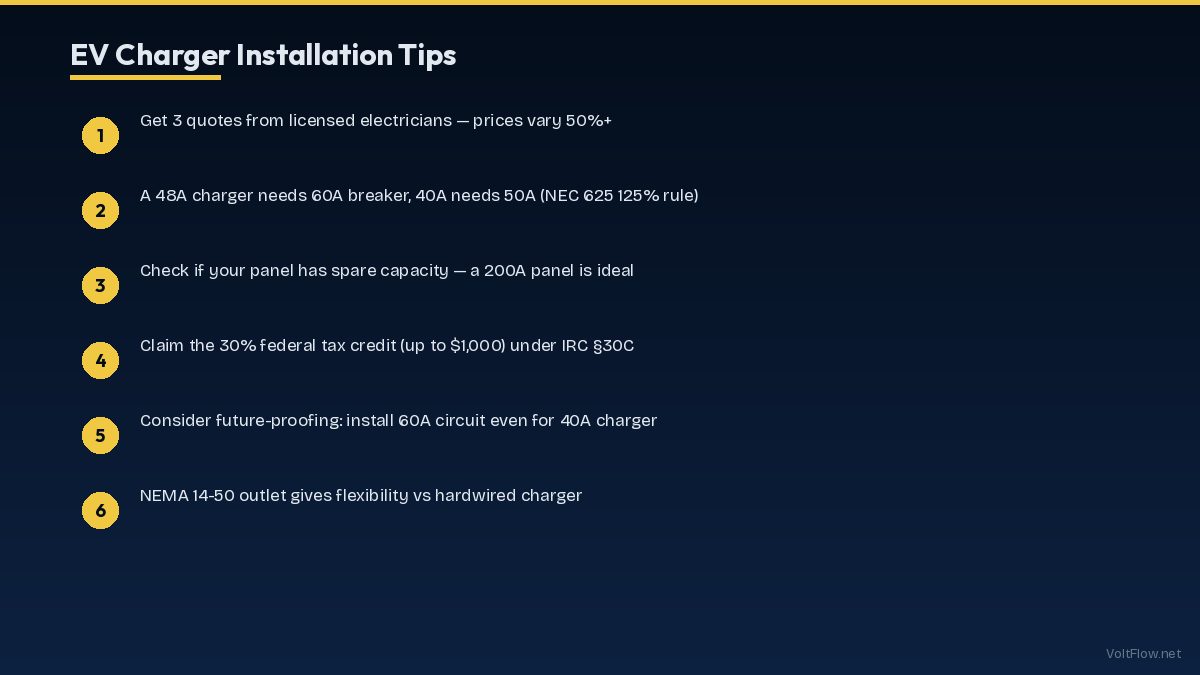

NEC Article 625 governs EV charging equipment. A 48A charger (like Tesla Wall Connector at max) is a continuous load, requiring a 60A breaker (48A × 1.25 = 60A) with 6 AWG copper wire. A 32A charger needs a 40A breaker with 8 AWG wire. A NEMA 14-50 outlet (for universal compatibility) needs a 50A breaker with 6 AWG wire. NEC 625.54 requires GFCI protection. See our EV Charger Breaker Guide.
The 30% Federal Tax Credit (IRC §30C)
The Alternative Fuel Vehicle Refueling Property Credit under IRC §30C provides a 30% tax credit up to $1,000 for residential EV charger installations (extended through 2032 by the Inflation Reduction Act). This covers both the charger unit and installation costs. For a $1,500 total installation, you get a $450 tax credit. Some states offer additional rebates — check your utility and state energy office for local incentives. The credit applies in the tax year the charger is placed in service.
Panel Capacity: Do You Need an Upgrade?
This is the biggest potential cost adder. If your electrical panel is a 100A service and already near capacity, adding a 60A EV circuit may require a panel upgrade ($2,000-3,500). A 200A panel typically has room for an EV charger. Check your panel: count the total amps of all breakers vs your service size. If adding 50-60A would exceed your service, options include: upgrading to 200A service, adding an EV load management device ($200-400) that shares capacity with other loads, or installing a lower-amperage charger (32A instead of 48A). Use our Electrical Load Calculator.

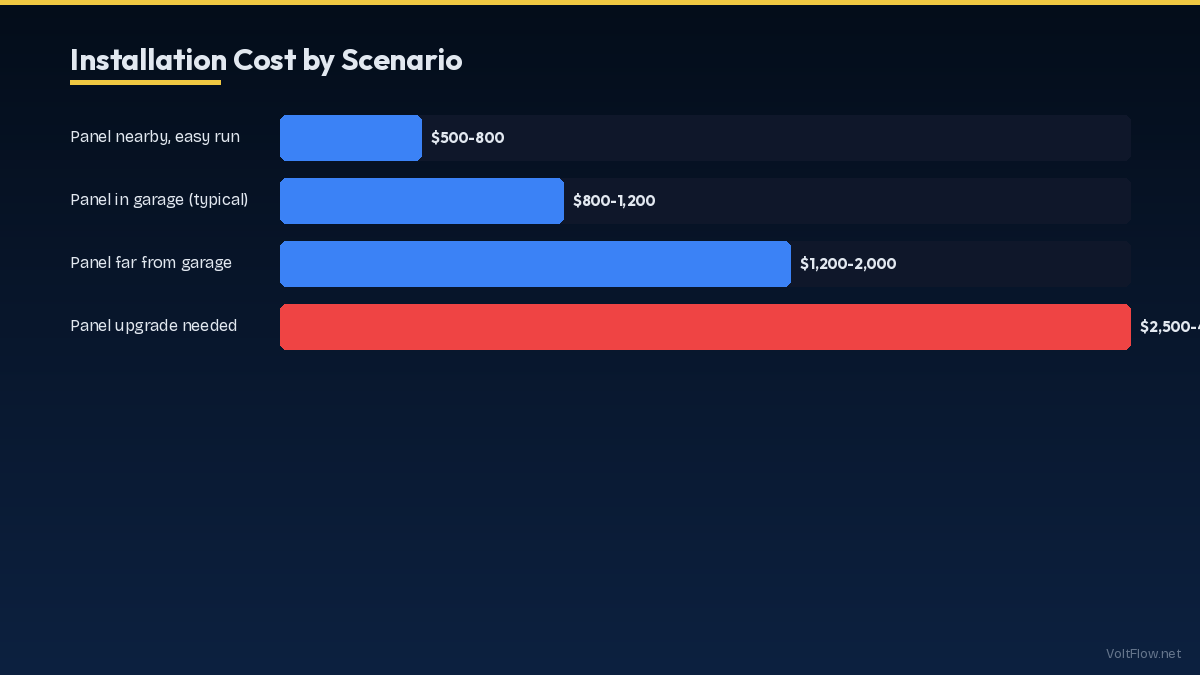

| Scenario | Charger | Install | Total | Notes |
|---|---|---|---|---|
| Panel in garage | $400 | $500-800 | $900-1200 | Short run, easy install |
| Panel far from garage | $400 | $1000-1500 | $1400-1900 | Long wire run |
| Panel full, need upgrade | $400 | $2500-3500 | $2900-3900 | New 200A panel needed |
| Outdoor installation | $500 | $800-1200 | $1300-1700 | Weatherproof NEMA 4 box |
Hardwired vs Plug-In Installation
A hardwired charger is permanently connected to the circuit — cleaner install but requires an electrician for any changes. A plug-in charger (NEMA 14-50 outlet) costs slightly more to install (outlet + charger) but offers flexibility — you can swap chargers, take it with you when moving, or plug in other 240V equipment. Most electricians recommend a NEMA 14-50 outlet for flexibility unless your charger manufacturer requires hardwiring.
Disclaimer: For educational reference only. Consult a licensed professional.
